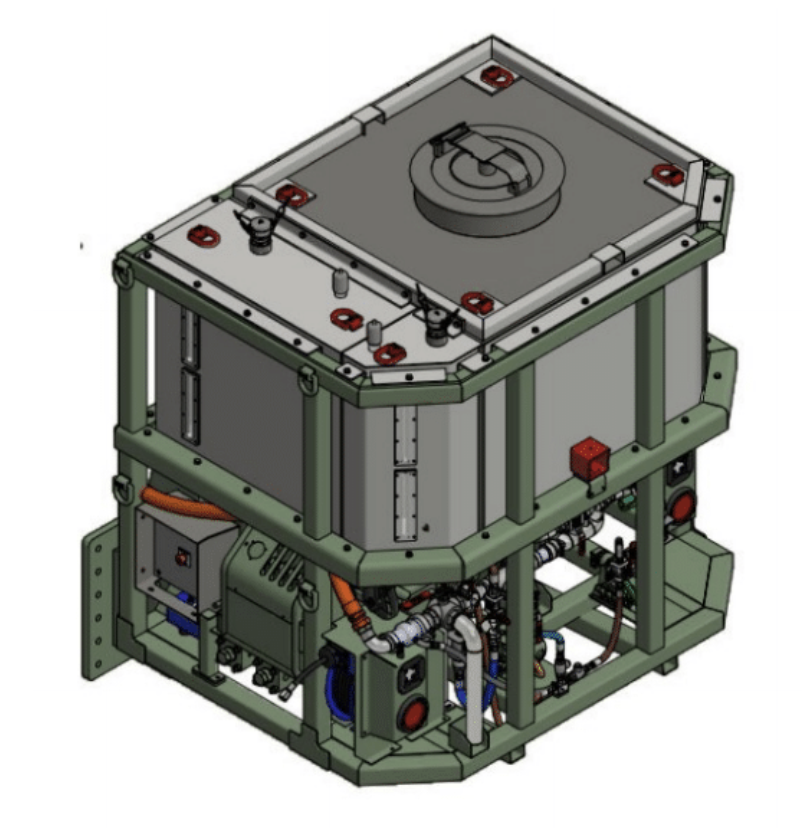

2T Emulsion Pumping Module

GENERAL SPECIFICATIONS: Model: EMU-2000

EMULSION PUMPING SYSTEM:

Emulsion:

Tank :

  • Tank Capacity: 2,250 Litres / 3000kg

  • Nominal Flowrate: 50-60kg/min

  • Nominal density: 1.35

  • Filling Connection 50mm Camlock

  • 500mm Manway hatch

  • Tank fully vented

Pump:

  • Stainless Steel Elquip Piston Pump 150mm Borex200mm Stroke

  • Butterfly Isolation Valve between pump and tank

  • Adjustable Homogeniser fitted in the discharge line

  • Thermal Fuse fitted to pump discharge40 bar Burst disc fitted to pump discharge

  • Temperature Sensor fitted

  • Pressure sensors fitted before and after the Homogeniser

For a full list of specifications or to request a quote, contact us today:
